Roofing System
ABSPL Offers a wide variety of World class Metal Roof Systems; We offer 3 distinctive types of profile systems made of Preprinted
Galvanized Steel, High Tensile Galvalume and Color coated Galvalume( 550 mpa). The systems are:-

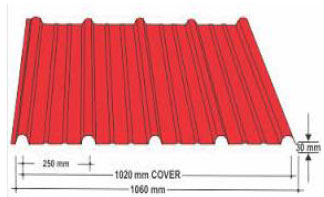

| ABSPL Hi-RIB Profile:- ABSPL HI-RIB PROFILE is Light weight wide span trapezoidal shaped roofing profile designed for economical application which gives aesthetical solution to all your needs. It has a bold wide span with 30mm rib depth with 250mm pitch strengthened by two stiffeners to allow easy water shredding. Best suited for heavy rain intensity area. |
 |
| ABSPL Klippon Profile- ABSPL KLIPPON PROFILE is an advance and superior roofing system suited for hi rain fall area & for low slop buildings. The profile is 41mm deep, 215mm pitch, trapezoidal profile having net cover width of 430mm with ribbed pans and anti-capillary flute. The profile is puncture less; offer better weather proofing and deep pans enable better water shedding. The roof sheets are fixed to the structure without punching the sheets with the help of specially designed clips. |
 |
|

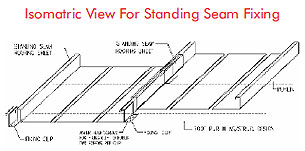

ABSPL Standing Seam Profile Standing seam roofing system is the roof sheets are fixed to the structure without punching the sheets with the help of specially designed seam dips. The profile is 51mm deep, 450mm pitch, trapezoidal profile having net cover width of 450mm with ribbed pans and the laps are 360 degree double lock seam. Profile is fixed with the concealed fastening clips. The clips used in the system have movable features allows the panel for thermal expansion & contraction during extreme temperature change & also resisting the wind uplift forces. The special clip seaming technique ensures leaks free roofs for many years. |
|
